The Junkosha 1 Series MWX122 is a heat-resistant cable that can be used in a wide continuous operating temperature range (-30 to+85 °C) in microwave measurement environments.

Key Facts:
Maximum Usable Frequencies: 26.5 GHz
Standard Insertion Loss (dB/m) at 18.5 GHz:  1.5
Standard Insertion Loss (dB/m) at Maximum Frequency:  1.9
Outer Cable Diameter (mm): 6.5
Cable Weight (g/m): 80
Minimum Bending Radius (inner side): 30mm
Continuous Operating Temperature Range (°C): -30~+85 °C
Assembly Length Minimum (mm): 300
Assembly Length Maximum (mm): 3000
Characteristic Impedance: 50±1 Ω
Capacitance (typ.): 89 pF/m
Propagation Delay (typ.): 4.39 ns/m
Wavelength Reduction Rate (typ.): 76%
VSWR (per connector/both ends of assy.): 1.153/1.33

Applications:
Microwave band measurements requiring a wide temperature range (device assessment, etc.)

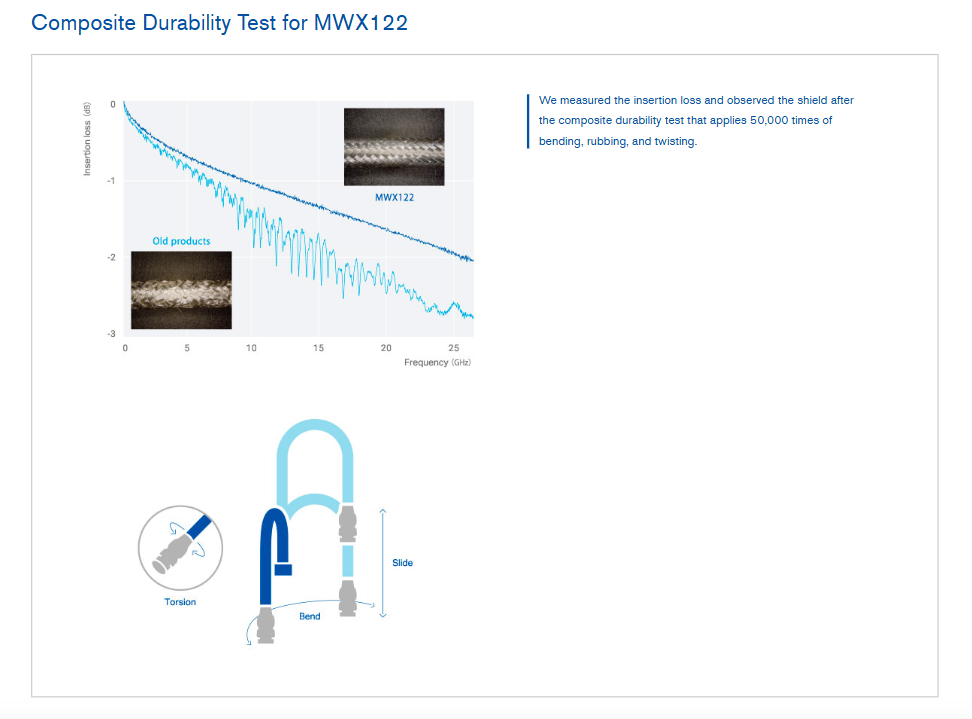

Testing equipment requiring durability
Multiport vector network analyzers

Request for Quote:
Please email info@signaledgesolutions.com with the following information:
Cable
Assembly length

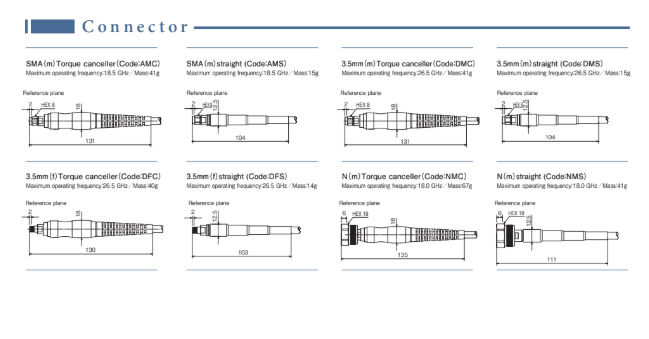

Connector
